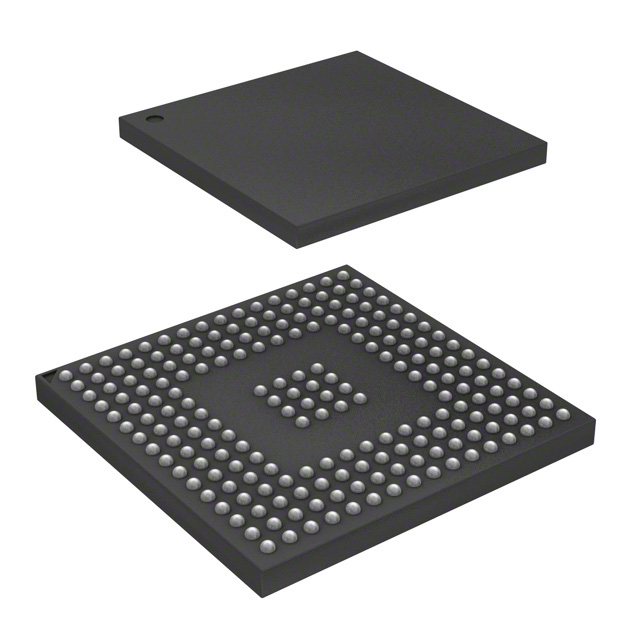

SPC5644AF0MMG2R
IC MCU 32BIT 4MB FLASH 208MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5644AF0MMG2R is a 32-bit single-core microcontroller from the MPC56xx Qorivva series, featuring an e200z4 core operating at 120MHz. This component offers 4MB of FLASH program memory and 192KB of RAM. Connectivity options include CANbus, EBI/EMI, LINbus, SCI, and SPI interfaces. It integrates a 40x12-bit Analog-to-Digital converter and supports peripherals such as DMA, POR, PWM, and WDT. The device is housed in a 208-BGA (17x17) surface mount package and operates within a voltage range of 1.14V to 5.25V, with an operating temperature range of -40°C to 125°C. This microcontroller is suitable for automotive and industrial applications.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-BGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z4 |
| Data Converters | A/D 40x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.25V |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-BGA (17x17) |
| Number of I/O | 120 |
| Programmable | Not Verified |
