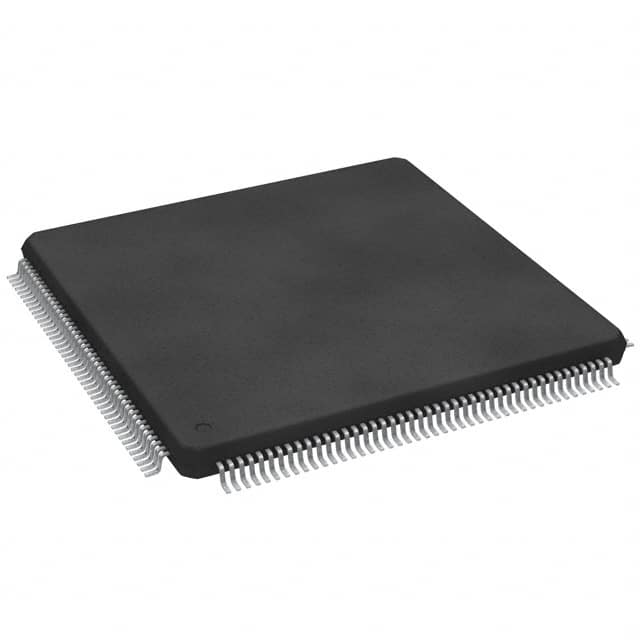

SPC5643AF0MLU2R
IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. SPC5643AF0MLU2R is a 32-bit e200z4 core microcontroller from the MPC56xx Qorivva series. This single-core device operates at 120MHz and features 3MB of FLASH program memory. It includes 192KB of RAM and is packaged in a 176-LQFP (24x24) surface mount configuration, supplied on tape and reel. Connectivity options include CANbus, EBI/EMI, LINbus, SCI, and SPI. The SPC5643AF0MLU2R incorporates a 40x12-bit Analog-to-Digital converter and peripherals such as DMA, POR, PWM, and WDT. Designed for demanding applications, this microcontroller is suitable for use in the automotive and industrial sectors. The operating temperature range is -40°C to 125°C (TA), with a supply voltage range of 1.14V to 5.25V.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z4 |
| Data Converters | A/D 40x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 5.25V |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 84 |
| Programmable | Not Verified |
