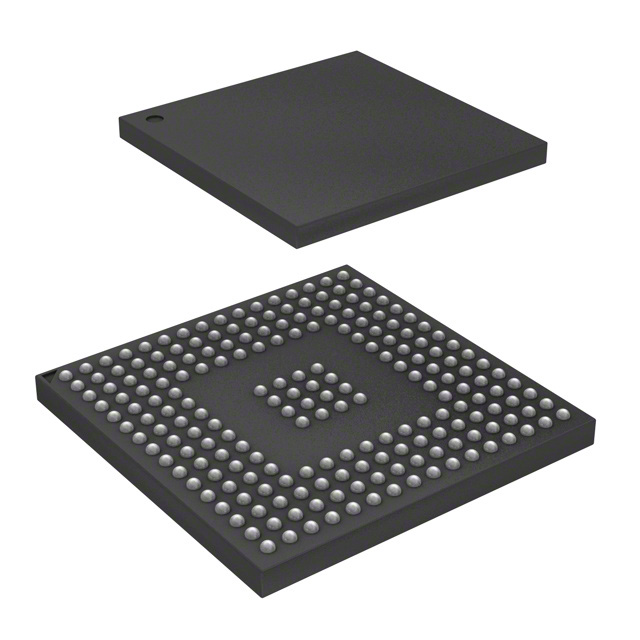

SPC5634MF1MMG80
IC MCU 32B 1.5MB FLASH 208MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC56xx Qorivva SPC5634MF1MMG80 is a 32-bit automotive-grade microcontroller featuring an e200z3 single-core processor operating at 80MHz. This component offers 1.5MB of FLASH program memory and 94KB of RAM. Connectivity options include CANbus, LINbus, SCI, SPI, and UART/USART, alongside EBI/EMI. It integrates a 34-channel 12-bit Analog-to-Digital converter. Peripherals include DMA, POR, PWM, and WDT. The SPC5634MF1MMG80 is housed in a 208-BGA (17x17) package for surface mounting and operates within a temperature range of -40°C to 125°C. This device is suited for applications in the automotive industry.
Additional Information
Series: MPC56xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-BGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 1.5MB (1.5M x 8) |
| RAM Size | 94K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z3 |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.25V |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-BGA (17x17) |
| Number of I/O | 80 |
| Programmable | Not Verified |
