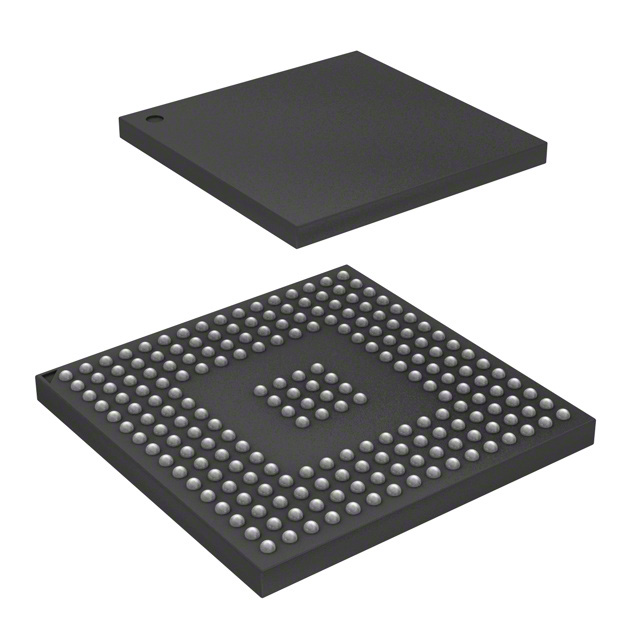

SPC5534MVM80R
IC MCU 32BIT 1MB FLASH 208MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC55xx Qorivva SPC5534MVM80R is a 32-bit automotive microcontroller featuring an e200z6 core operating at 80MHz. This device offers 1MB of FLASH program memory and 64KB of RAM, suitable for demanding automotive applications. Connectivity options include CANbus, EBI/EMI, Ethernet, SCI, and SPI interfaces, facilitating robust communication. Integrated peripherals include DMA, POR, PWM, and WDT, enhancing system control and reliability. The SPC5534MVM80R is housed in a 208-MAPBGA (17x17) package and supports surface mount installation. It operates within a temperature range of -40°C to 125°C (TA) with a supply voltage of 1.35V to 1.65V. This component is widely utilized in automotive powertrain and body control systems.
Additional Information
Series: MPC55xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 208-BGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z6 |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.35V ~ 1.65V |
| Connectivity | CANbus, EBI/EMI, Ethernet, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-BGA (17x17) |
| Number of I/O | 192 |
| Programmable | Not Verified |
