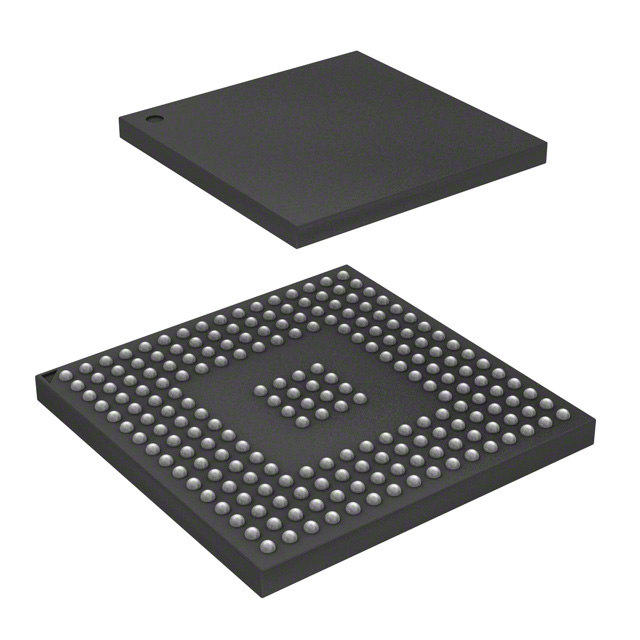

SPC5534MVM80
IC MCU 32BIT 1MB FLASH 208MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. SPC5534MVM80 is a 32-bit single-core Qorivva microcontroller featuring the e200z6 core. This device operates at 80MHz and offers 1MB of FLASH program memory with a 64KB RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, SCI, and SPI. The SPC5534MVM80 is equipped with 34 analog-to-digital converters with 12-bit resolution and 192 I/O lines. Integrated peripherals include DMA, POR, PWM, and WDT. The component is supplied in a 208-MAPBGA package with a surface mount configuration and operates within an ambient temperature range of -40°C to 125°C. This microcontroller is suitable for automotive and industrial applications.
Additional Information
Series: MPC55xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-BGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z6 |
| Data Converters | A/D 34x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.35V ~ 1.65V |
| Connectivity | CANbus, EBI/EMI, Ethernet, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 208-BGA (17x17) |
| Number of I/O | 192 |
| Programmable | Not Verified |
