SP5746CHK1AMMJ6R

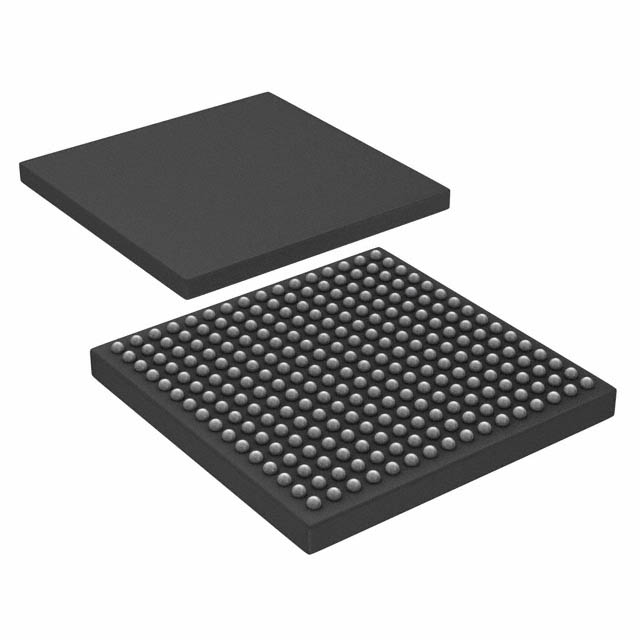

IC MCU 32BIT 3MB FLSH 256MAPPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MPC57xx series microcontroller, part number SP5746CHK1AMMJ6R, features a 32-bit dual-core e200z2 and e200z4 processor architecture operating at 80MHz and 160MHz respectively. This component integrates 3MB of FLASH program memory and 512KB of RAM, supported by A/D converters with 80x10-bit and 64x12-bit resolution. The device offers extensive connectivity options including CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB (including OTG). Peripheral functions encompass DMA, LVD, POR, and WDT. Housed in a 256-MAPPBGA (17x17) surface mount package, the SP5746CHK1AMMJ6R operates from a 3V to 5.5V supply and is rated for an ambient temperature range of -40°C to 125°C. This microcontroller is commonly utilized in automotive and industrial applications.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Number of I/O | 178 |
| Programmable | Not Verified |
