SP5746CBK1AMMJ6R

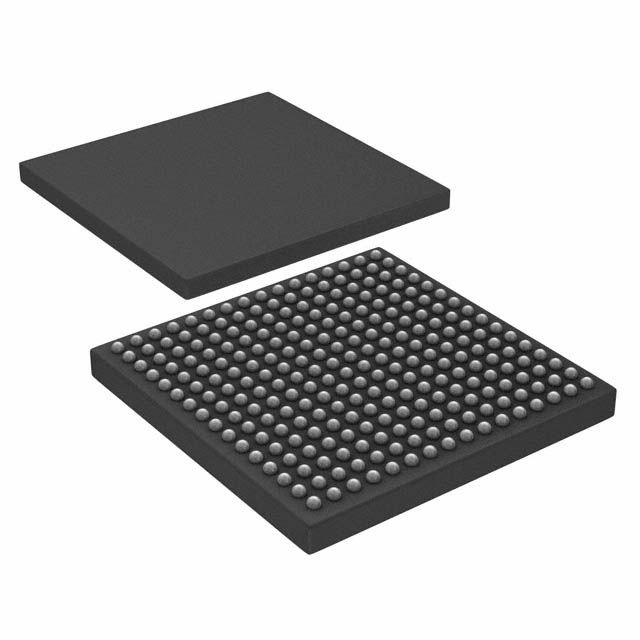

IC MCU 32BIT 3MB FLSH 256MAPPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx Series microcontroller, part number SP5746CBK1AMMJ6R. This 32-bit, dual-core microcontroller features e200z2 and e200z4 core processors, operating at 80MHz and 160MHz respectively. It offers 3MB of FLASH program memory and 512KB of RAM. The device includes extensive connectivity options such as CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG support. Data conversion capabilities include 80x10-bit and 64x12-bit ADCs. Peripherals include DMA, LVD, POR, and WDT. The SP5746CBK1AMMJ6R is housed in a 256-MAPPBGA (17x17) package, suitable for surface mounting. It operates within a voltage range of 3V to 5.5V and an ambient temperature range of -40°C to 125°C. This component is commonly utilized in automotive and industrial applications.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 256-MAPPBGA (17x17) |
| Number of I/O | 178 |
| Programmable | Not Verified |
