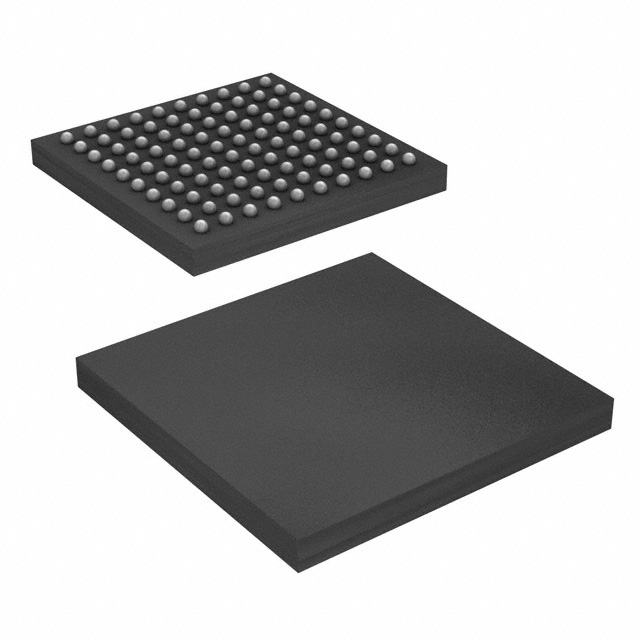

SP5746CBK1AMMH6R
IC MCU 32BIT 3MB FLASH 100MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MPC57xx series microcontroller, part number SP5746CBK1AMMH6R, features a 32-bit dual-core e200z2 and e200z4 processor architecture operating at 80MHz and 160MHz respectively. This device offers 3MB of FLASH program memory and 512KB of RAM, supported by an internal oscillator and a 3V to 5.5V supply voltage. Connectivity options include CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB with OTG capabilities. On-chip peripherals include DMA, LVD, POR, and WDT. Data conversion is handled by 80x10-bit and 64x12-bit ADCs. The microcontroller is housed in a 100-MAPBGA (11x11) package, surface mounted, and operates within a temperature range of -40°C to 125°C. This component is suitable for applications in automotive and industrial sectors. It is supplied on a tape and reel.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 100-MAPBGA (11x11) |
| Programmable | Not Verified |
