SP5746CBK1AMKU6R

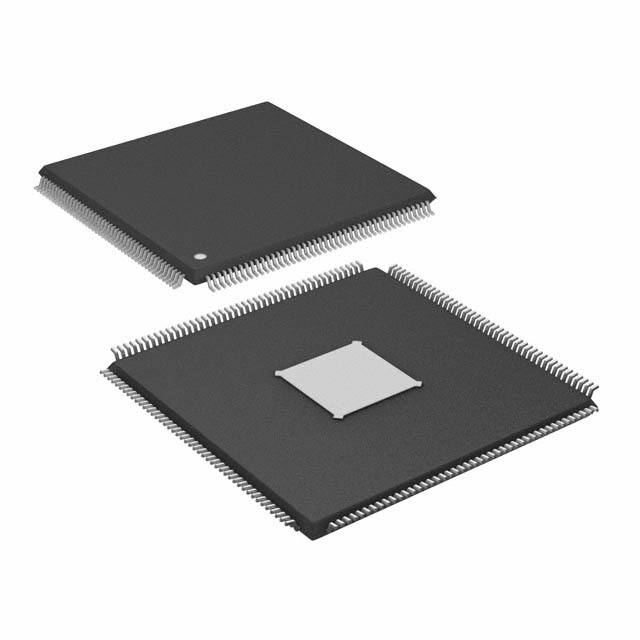

IC MCU 32BIT 3MB FLASH 176LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC57xx Series microcontroller, part number SP5746CBK1AMKU6R. This 32-bit dual-core microcontroller features e200z2 and e200z4 cores operating at 80MHz and 160MHz respectively. It includes 3MB of FLASH program memory and 512KB of RAM. The component offers extensive connectivity options including CANbus, Ethernet, I2C, LINbus, SAI, SPI, and USB (including OTG). Integrated peripherals include DMA, LVD, POR, and WDT. Data conversion capabilities are provided by 80x10-bit and 64x12-bit ADCs. The device is housed in a 176-LQFP (24x24) exposed pad package for surface mounting. Operating voltage is specified from 3V to 5.5V with an operating temperature range of -40°C to 125°C. This component is commonly utilized in the automotive and industrial sectors.
Additional Information
Series: MPC57xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 80MHz/160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 80x10b, 64x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 129 |
| Programmable | Not Verified |
