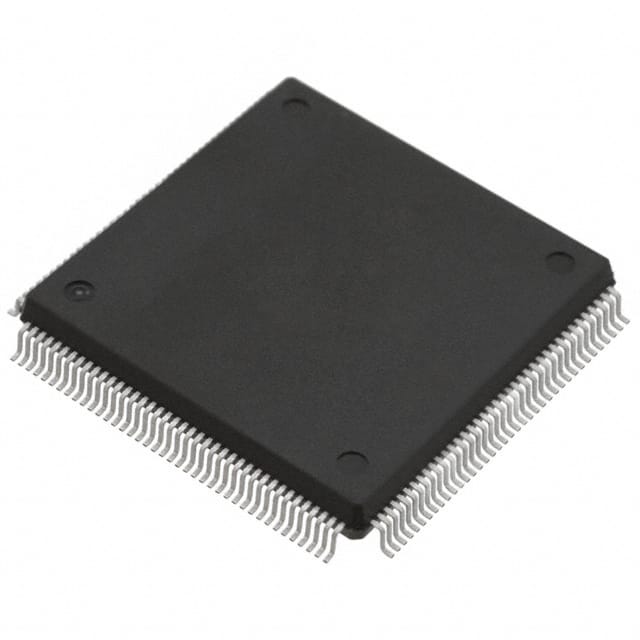

SC68376BGCAB25
IC MCU 32BIT ROMLESS 160QFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. M683xx series microcontroller, part number SC68376BGCAB25, is a 32-bit single-core CPU32 processor operating at 25MHz. This ROMless device features 7.5K x 8 RAM and is housed in a 160-QFP (28x28) surface mount package. Connectivity options include CANbus, EBI/EMI, SCI, and SPI. Peripheral functions are supported by POR, PWM, and WDT. The component includes 16 channels of 10-bit A/D conversion and 18 general-purpose I/O pins. Designed for operation within a -40°C to 85°C temperature range, it requires an external oscillator and a supply voltage of 4.75V to 5.25V. This microcontroller is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: M683xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 160-BQFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | - |
| RAM Size | 7.5K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | CPU32 |
| Data Converters | A/D 16x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 160-QFP (28x28) |
| Number of I/O | 18 |
| Programmable | Not Verified |
