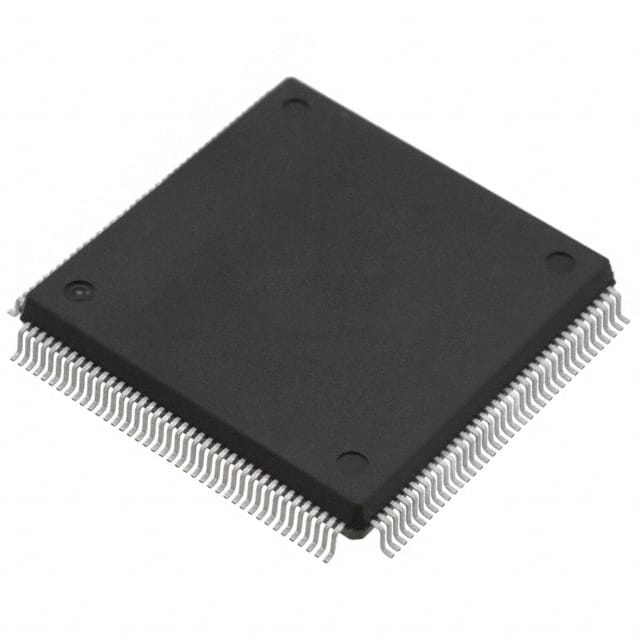

SC68376BAMAB20
IC MCU 32BIT ROMLESS 160QFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. M683xx series microcontroller, part number SC68376BAMAB20, features a 32-Bit Single-Core CPU32 processor operating at 20MHz. This ROMless device offers 7.5K x 8 of RAM and includes integrated peripherals such as POR, PWM, and WDT. Connectivity options include CANbus, EBI/EMI, SCI, and SPI. It also incorporates 16x10b Analog-to-Digital converters. The SC68376BAMAB20 is housed in a 160-QFP (28x28) surface mount package and operates within a temperature range of -40°C to 125°C. This component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: M683xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 160-BQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | - |
| RAM Size | 7.5K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | CPU32 |
| Data Converters | A/D 16x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 160-QFP (28x28) |
| Number of I/O | 18 |
| Programmable | Not Verified |
