SC511660MZP40
IC MCU 32BIT 448KB FLASH 272PBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

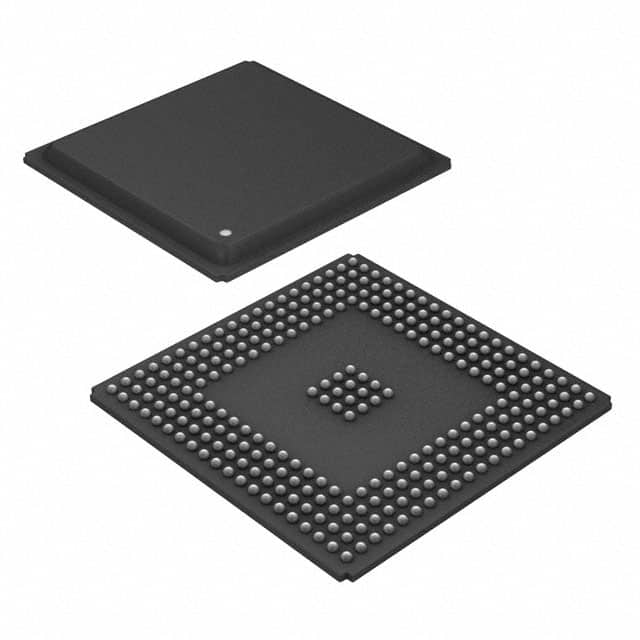

NXP USA Inc. MPC5xx series microcontroller, part number SC511660MZP40. This 32-bit single-core PowerPC microcontroller operates at 40MHz, featuring 448KB of FLASH program memory and 26KB of RAM. It offers extensive connectivity options including CANbus, EBI/EMI, SCI, SPI, and UART/USART. The SC511660MZP40 includes 32x10-bit Analog-to-Digital converters and peripherals such as POR, PWM, and WDT. Housed in a 272-PBGA (27x27) surface mount package, this component is designed for operation across an industrial temperature range of -40°C to 125°C. It is commonly utilized in automotive, industrial automation, and aerospace applications where robust performance and reliable communication are critical. The device operates with a supply voltage between 2.5V and 2.7V.
Additional Information
Series: MPC5xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 272-BBGA |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 448KB (448K x 8) |
| RAM Size | 26K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | PowerPC |
| Data Converters | A/D 32x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 2.7V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 272-PBGA (27x27) |
| Number of I/O | 101 |
| Programmable | Not Verified |
