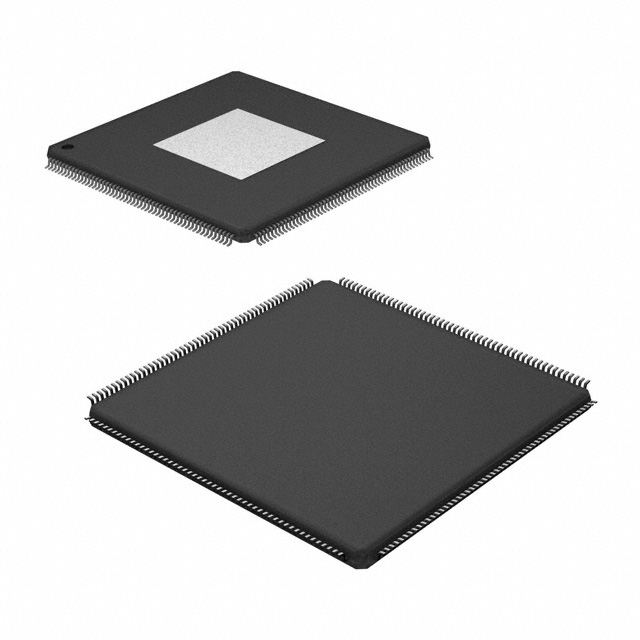

SAC57D54HCVLT
IC MCU 32BIT 4MB FLASH 208LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MAC57Dxxx Series SAC57D54HCVLT is a 32-bit tri-core microcontroller featuring ARM Cortex-A5, Cortex-M4, and Cortex-M0+ processors operating at 80MHz, 160MHz, and 320MHz respectively. This device offers 4MB of FLASH program memory and 2.3MB of RAM, supported by 24x12-bit Analog-to-Digital converters. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, LINbus, and SPI interfaces. Peripherals encompass DMA, LCD controllers, LVD/HVD, POR, PWM, and WDT. The SAC57D54HCVLT is housed in a 208-LQFP exposed pad package suitable for surface mounting, with an operating temperature range of -40°C to 105°C (TA). Its robust feature set makes it suitable for automotive, industrial automation, and advanced driver-assistance systems applications.
Additional Information
Series: MAC57DxxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 208-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 80MHz, 160MHz, 320MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 2.3M x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-A5/M4/M0+ |
| Data Converters | A/D 24x12b |
| Core Size | 32-Bit Tri-Core |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, LINbus, SPI |
| Peripherals | DMA, LCD, LVD/HVD, POR, PWM, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Programmable | Not Verified |
