S9S12ZVLS3F0VFM

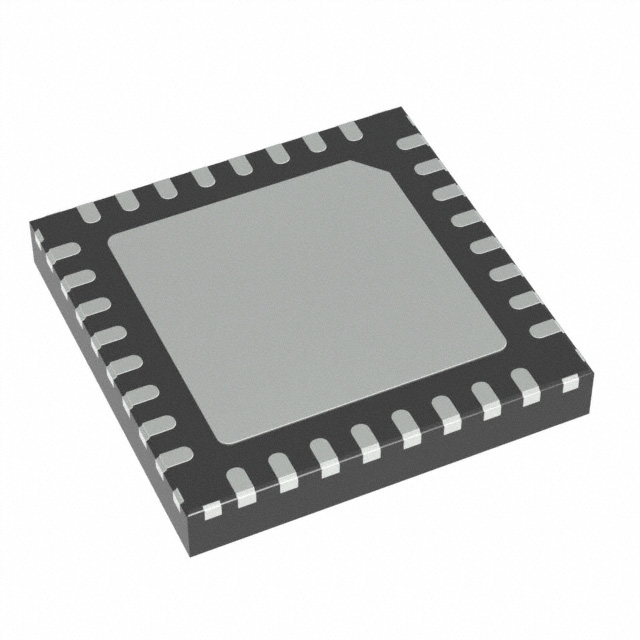

IC MCU 16BIT 32KB FLASH 32QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S12 MagniV S9S12ZVLS3F0VFM is a 16-bit microcontroller featuring the S12Z core. This device offers 32KB of FLASH program memory and 1KB of RAM. Integrated peripherals include a 6x10-bit Analog-to-Digital converter, LVD, POR, PWM, and WDT. Connectivity options support I2C, IrDA, LINbus, SCI, SPI, and UART/USART. The microcontroller operates at a maximum speed of 32MHz and is housed in a 32-HVQFN (5x5) package suitable for surface mounting. It is designed for operation within a voltage range of 5.5V to 18V and an ambient temperature range of -40°C to 105°C. This component is commonly utilized in automotive and industrial applications.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Speed | 32MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 6x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 18V |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 32-HVQFN (5x5) |
| Number of I/O | 19 |
| Programmable | Not Verified |
