S9S12P96J0VFTR

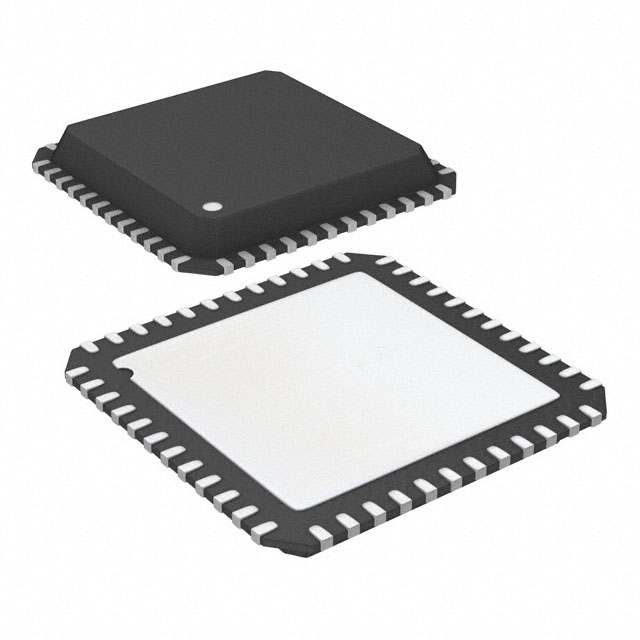

IC MCU 16BIT 96KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 microcontroller, part number S9S12P96J0VFTR, features a 16-bit HCS12 core operating at 32MHz. This device offers 96KB of FLASH program memory and 6KB of RAM. Peripherals include CANbus, SCI, and SPI connectivity, 10x12-bit Analog-to-Digital converters, and 4KB of EEPROM. Additional integrated peripherals include LVD, POR, PWM, and WDT. The microcontroller supports a voltage range of 1.72V to 5.5V and operates across an industrial temperature range of -40°C to 105°C. Mounting is surface mount via a 48-TFQFN Exposed Pad (7x7) package, supplied on tape and reel. This component is commonly utilized in automotive and industrial automation applications.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 96KB (96K x 8) |
| RAM Size | 6K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | HCS12 |
| Data Converters | A/D 10x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 34 |
| Programmable | Not Verified |
