S9S12P32J0CFTR

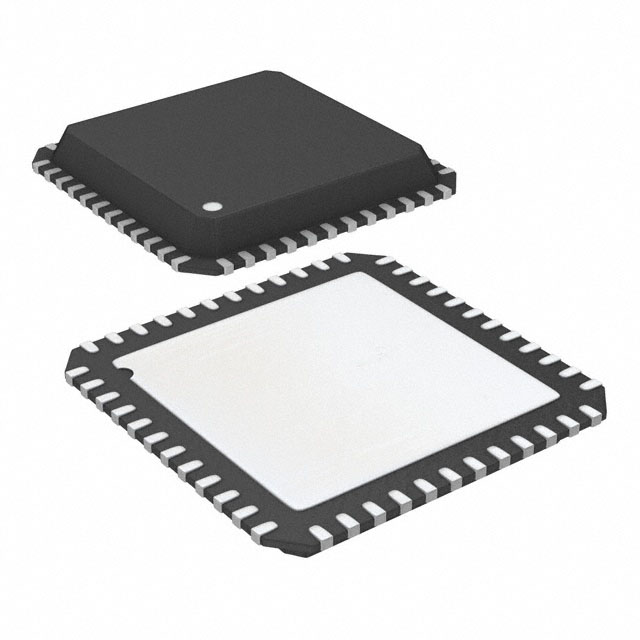

IC MCU 16BIT 32KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 microcontroller, part number S9S12P32J0CFTR. This 16-bit MCU features a 32MHz HCS12 core, with 32KB of FLASH program memory and 2KB of RAM. The device includes 4K x 8 EEPROM. Connectivity options encompass CANbus, SCI, and SPI interfaces. On-chip peripherals include LVD, POR, PWM, and WDT for enhanced system control. It also offers 10 channels of 12-bit Analog-to-Digital conversion. Supplied in a 48-QFN-EP (7x7) surface mount package on tape and reel, this component operates from 1.72V to 5.5V and is rated for -40°C to 85°C ambient temperatures. Applications span automotive, industrial automation, and consumer electronics.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | HCS12 |
| Data Converters | A/D 10x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 34 |
| Programmable | Not Verified |
