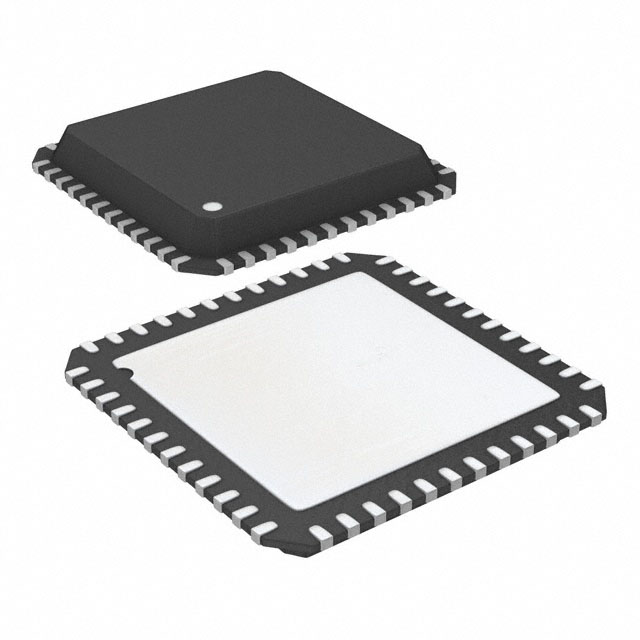

S9S12GN32F0CFTR
IC MCU 16BIT 32KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 Series microcontroller, part number S9S12GN32F0CFTR. This 16-bit MCU features a 12V1 core operating at 25MHz. It includes 32KB of FLASH program memory and 2KB of RAM. Connectivity options include IrDA, LINbus, SCI, and SPI. The device is equipped with an 8-channel, 10-bit Analog-to-Digital converter and 1KB of EEPROM. Peripheral support includes LVD, POR, PWM, and WDT. The S9S12GN32F0CFTR is supplied in a 48-QFN-EP (7x7) surface-mount package on tape and reel. Its operating temperature range is -40°C to 85°C. This component is suitable for applications in automotive and industrial automation.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | 12V1 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Connectivity | IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 40 |
| Programmable | Not Verified |
