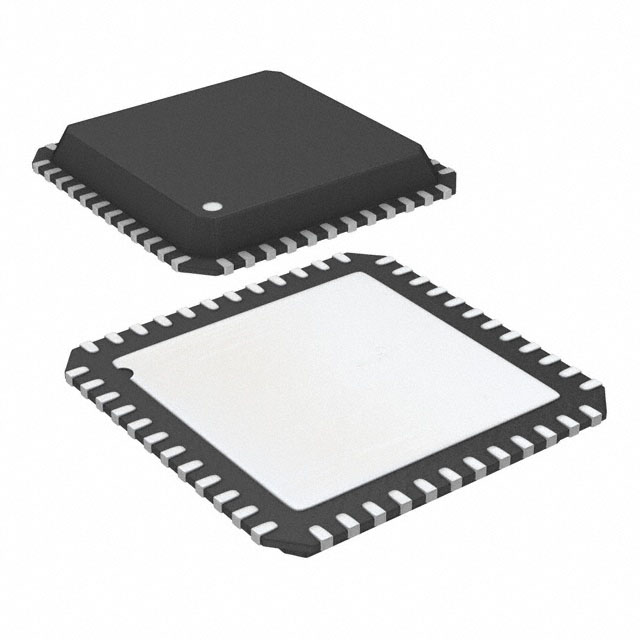

S9S12GN32F0CFT
IC MCU 16BIT 32KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 S9S12GN32F0CFT is a 16-bit microcontroller featuring a 12V1 core processor operating at 25MHz. This device offers 32KB of FLASH program memory with 2KB of RAM and 1KB of EEPROM. Integrated peripherals include LVD, POR, PWM, and WDT. Connectivity options encompass IrDA, LINbus, SCI, and SPI. The S9S12GN32F0CFT incorporates an 8-channel, 10-bit Analog-to-Digital converter. It is supplied in a 48-QFN-EP (7x7) surface mount package and operates within a voltage range of 3.13V to 5.5V, with an ambient temperature range of -40°C to 85°C. This component is commonly utilized in automotive and industrial applications.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | 12V1 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Connectivity | IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 40 |
| Programmable | Not Verified |
