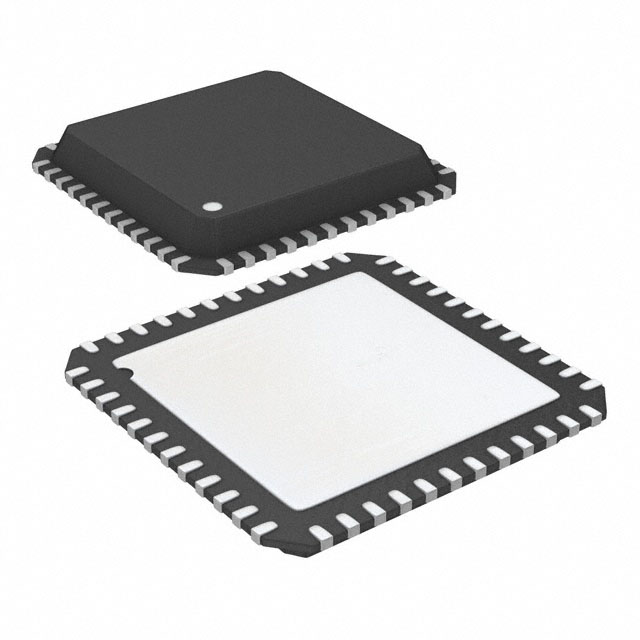

S9S12GN32AVFT
IC MCU 16BIT 32KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 series microcontroller, part number S9S12GN32AVFT. This 16-bit MCU features a 12V1 core running at 25MHz. It offers 32KB of FLASH program memory and 2KB of RAM, complemented by 1KB of EEPROM. Connectivity options include IrDA, LINbus, SCI, and SPI interfaces. The device integrates an 8-channel, 10-bit Analog-to-Digital converter. Peripherals include LVD, POR, PWM, and WDT for robust system control. Designed for surface mounting, it comes in a 48-QFN-EP (7x7) package. Operating temperature range is -40°C to 105°C (TA). Applications include automotive, industrial automation, and consumer electronics.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | 12V1 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Connectivity | IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 40 |
| Programmable | Not Verified |
