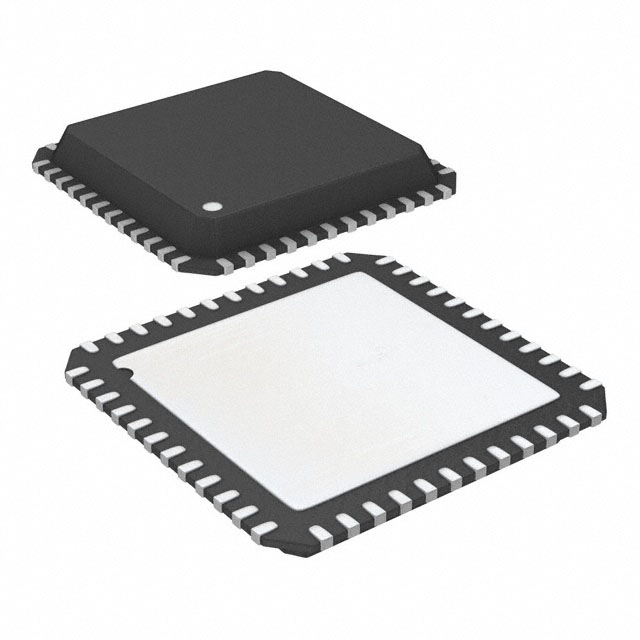

S9S12GN32AMFT
IC MCU 16BIT 32KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 S9S12GN32AMFT is a 16-bit microcontroller featuring a 32KB FLASH program memory and 2KB RAM. This device operates at a 25MHz core speed and is built around the 12V1 core architecture. It includes an 8-channel 10-bit Analog-to-Digital converter and 1KB of EEPROM. Connectivity options include IrDA, LINbus, SCI, and SPI interfaces. Peripherals such as Low Voltage Detect (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT) are integrated. The S9S12GN32AMFT is available in a 48-QFN-EP (7x7) surface mount package and operates across a temperature range of -40°C to 125°C. This component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | 12V1 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Connectivity | IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 40 |
| Programmable | Not Verified |
