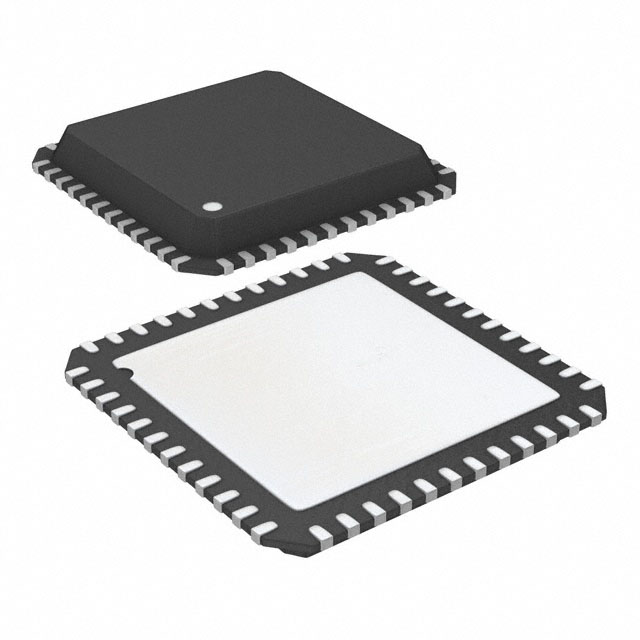

S9S12GN32ACFT
IC MCU 16BIT 32KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 series S9S12GN32ACFT is a 16-bit microcontroller featuring a 12V1 core processor operating at 25MHz. This component offers 32KB of FLASH program memory and 2KB of RAM, complemented by 1KB of EEPROM. Connectivity options include IrDA, LINbus, SCI, and SPI interfaces. The device integrates an 8x10-bit Analog-to-Digital converter and includes peripherals such as LVD, POR, PWM, and WDT. With 40 I/O lines and an internal oscillator, the S9S12GN32ACFT is packaged in a 48-QFN-EP (7x7) surface mount configuration. It operates across an industrial temperature range of -40°C to 85°C and is supplied in trays. This microcontroller is suitable for automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | 12V1 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Connectivity | IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 40 |
| Programmable | Not Verified |
