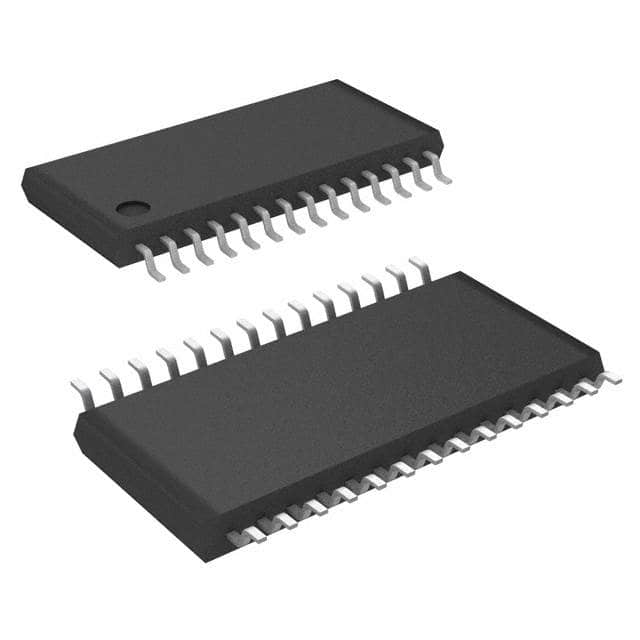

S9S08SL16F1VTL
IC MCU 8BIT 16KB FLASH 28TSSOPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 S08 Microcontroller, part number S9S08SL16F1VTL, features an 8-bit S08 core operating at 40MHz. This device offers 16KB of FLASH program memory and 512 bytes of RAM, complemented by 256 bytes of EEPROM. Connectivity options include I2C, LINbus, SCI, and SPI. The S9S08SL16F1VTL includes a 16-channel 10-bit Analog-to-Digital converter and integrated peripherals such as LVD, POR, PWM, and WDT. With 22 general-purpose I/O pins, it is housed in a 28-TSSOP surface-mount package. The operating temperature range is -40°C to 105°C. This microcontroller is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 16x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 28-TSSOP |
| Number of I/O | 22 |
| Programmable | Not Verified |
