S9S08SG8E2CSC

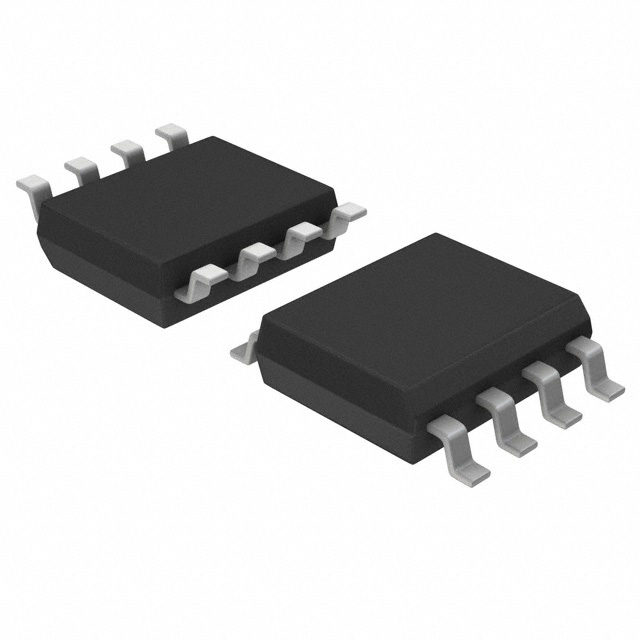

IC MCU 8BIT 8KB FLASH 8SOICManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 series S9S08SG8E2CSC is an 8-bit microcontroller featuring an S08 core. This device offers 8KB of FLASH program memory and 512 bytes of RAM, operating at a maximum speed of 40MHz. It includes integrated analog-to-digital conversion with 4 channels at 10-bit resolution. Peripheral support encompasses I2C, LINbus, SCI, and SPI connectivity, along with LVD, POR, PWM, and WDT functionalities. The S9S08SG8E2CSC is housed in an 8-SOIC package for surface mounting and operates within a voltage range of 2.7V to 5.5V. This component finds application in automotive, industrial automation, and consumer electronics sectors.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 4x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 8-SOIC |
| Number of I/O | 4 |
| Programmable | Not Verified |
