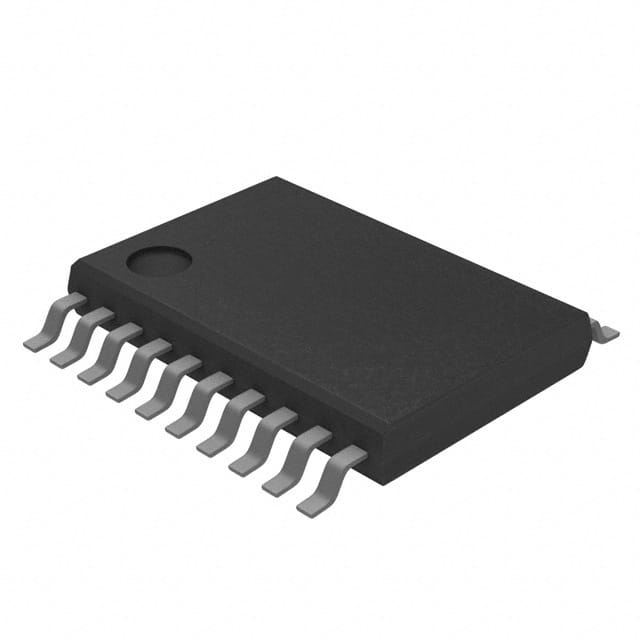

S9S08RN8W2MTJ
IC MCU 8BIT 8KB FLASH 20TSSOPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
S08 S08 Microcontroller IC 8-Bit 20MHz 8KB (8K x 8) FLASH 20-TSSOP
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 10x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 20-TSSOP |
| Number of I/O | 16 |
| Programmable | Not Verified |
