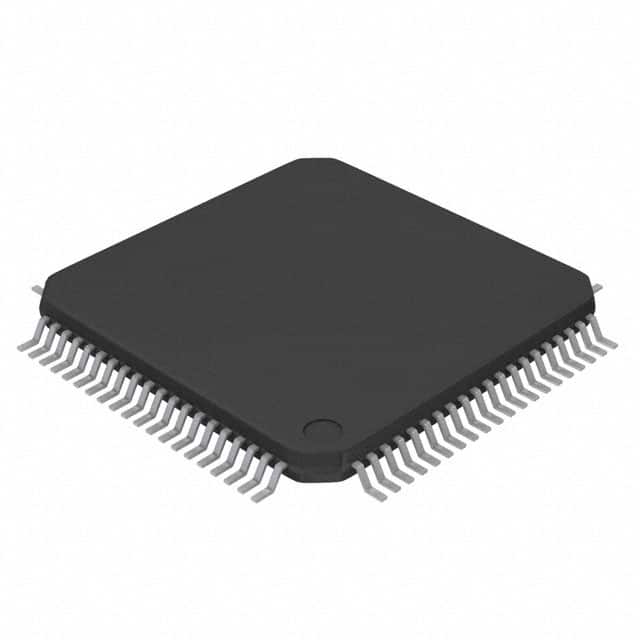

S9S08LG32J0CLKR
IC MCU 8BIT 32KB FLASH 80LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 microcontroller, part number S9S08LG32J0CLKR, features an 8-bit S08 core operating at 40MHz. This device offers 32KB of FLASH program memory and 1.9KB of RAM. Connectivity options include I2C, LINbus, SCI, and SPI interfaces. On-chip peripherals include LCD, LVD, POR, PWM, and WDT. The S9S08LG32J0CLKR is equipped with a 16-channel, 12-bit Analog-to-Digital converter. It is housed in an 80-LQFP (14x14) package for surface mounting and operates within a voltage range of 2.7V to 5.5V, with an ambient temperature rating of -40°C to 85°C. This component is suitable for applications in automotive, industrial, and consumer electronics. It is supplied on a Tape & Reel (TR).
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1.9K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 16x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | LCD, LVD, POR, PWM, WDT |
| Supplier Device Package | 80-LQFP (14x14) |
| Number of I/O | 69 |
| Programmable | Not Verified |
