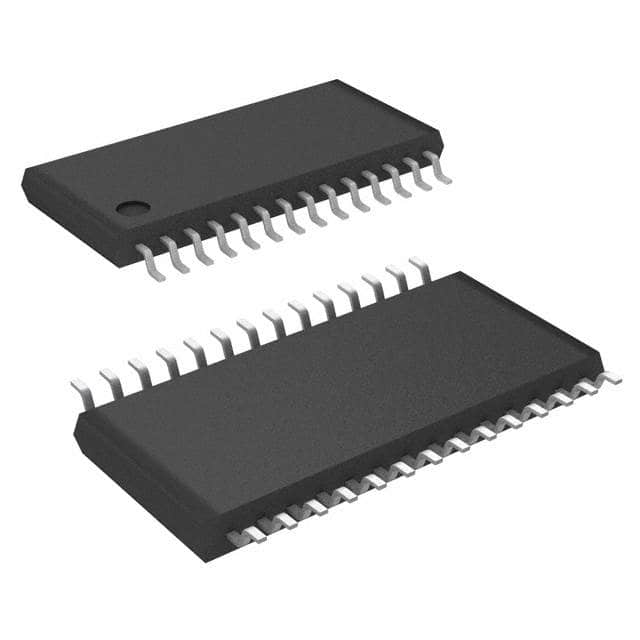

S9S08EL32F1CTLR
IC MCU 8BIT 32KB FLASH 28TSSOPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 S08 Microcontroller, part number S9S08EL32F1CTLR, features an 8-bit S08 core operating at up to 40MHz. This MCU offers 32KB of FLASH program memory and 1KB of RAM, complemented by 512 bytes of EEPROM. Connectivity options include I2C, LINbus, SCI, and SPI interfaces. On-chip peripherals include LVD, POR, PWM, and WDT. The device is equipped with a 16-channel, 10-bit Analog-to-Digital converter and provides 22 general-purpose I/O pins. Supplied in a 28-TSSOP package for surface mounting, it operates over a temperature range of -40°C to 85°C (TA) with a supply voltage of 2.7V to 5.5V. This component is widely utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 16x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 28-TSSOP |
| Number of I/O | 22 |
| Programmable | Not Verified |
