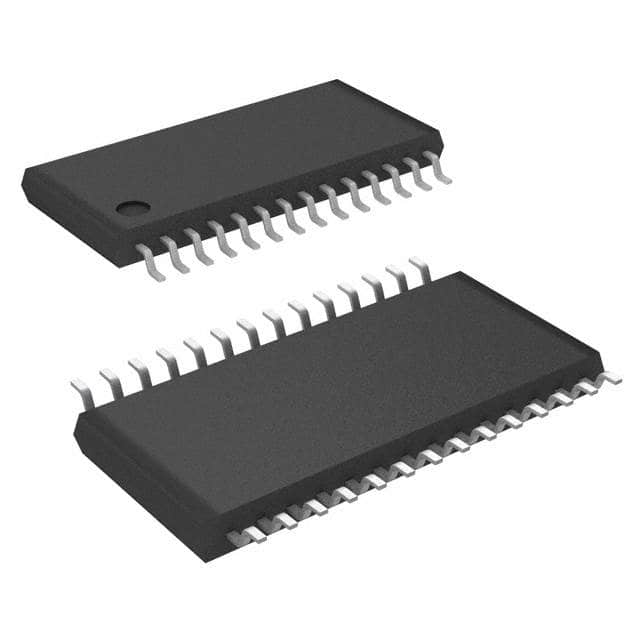

S9S08EL16F1MTL
IC MCU 8BIT 16KB FLASH 28TSSOPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 Series microcontroller, part number S9S08EL16F1MTL, features an 8-bit S08 core processor operating at 40MHz. This device offers 16KB of FLASH program memory and 512 bytes of RAM, complemented by 256 bytes of EEPROM. Connectivity options include I2C, LINbus, SCI, and SPI interfaces. The microcontroller is equipped with a 16-channel 10-bit Analog-to-Digital converter and peripherals such as LVD, POR, PWM, and WDT. It has 22 general-purpose I/O pins and is housed in a 28-TSSOP package suitable for surface mounting. The operating temperature range is -40°C to 125°C. This component is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 16x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 28-TSSOP |
| Number of I/O | 22 |
| Programmable | Not Verified |
