S9S08AW48E7VFGER
IC MCU 8BIT 48KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

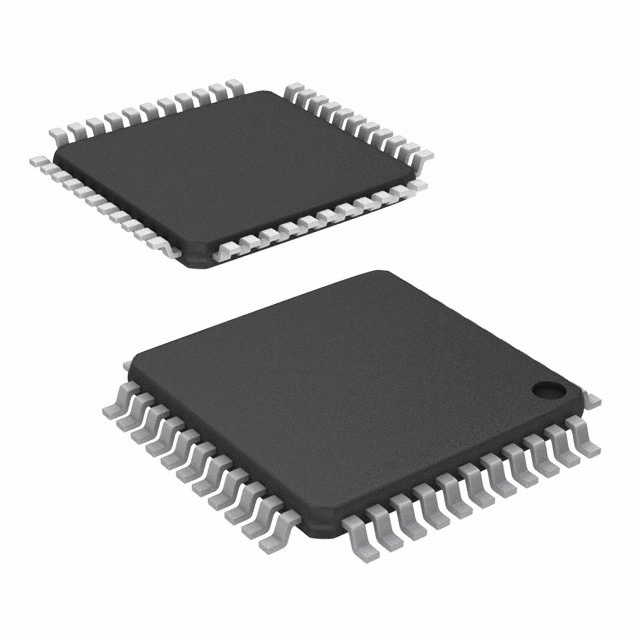

NXP USA Inc. S08 Series microcontroller, part number S9S08AW48E7VFGER. This 8-bit S08 core microcontroller operates at 40MHz and features 48KB of FLASH program memory with 2KB of internal RAM. Connectivity is provided via I2C, SCI, and SPI interfaces. The device includes an 8x10-bit Analog-to-Digital converter and peripherals such as LVD, POR, PWM, and WDT. Packaged in a 44-LQFP (10x10) surface mount configuration, this component is supplied on tape and reel. It operates within a voltage range of 2.7V to 5.5V and an ambient temperature range of -40°C to 105°C. Applications include automotive and industrial automation.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 48KB (48K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 34 |
| Programmable | Not Verified |
