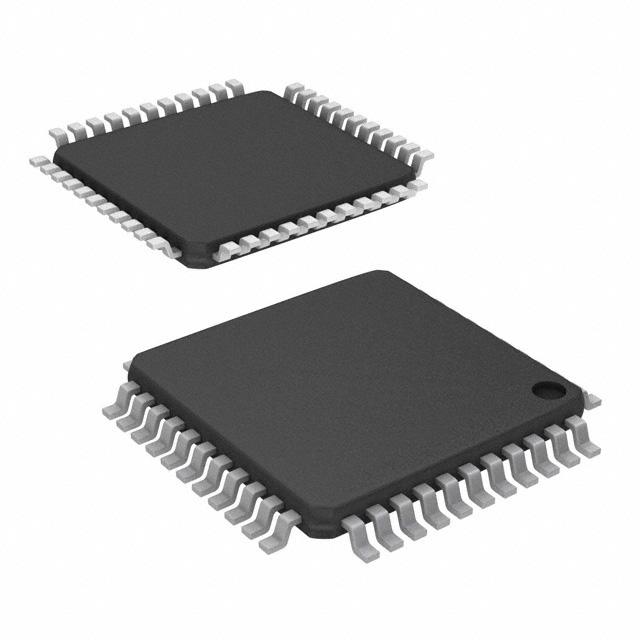

S9S08AW48E5CFGE
IC MCU 8BIT 48KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 Series 8-bit microcontroller, part number S9S08AW48E5CFGE, features a 40MHz S08 core with 48KB of FLASH program memory and 2KB of RAM. This device offers 34 I/O pins and integrates an 8x10-bit A/D converter. Connectivity options include I2C, SCI, and SPI interfaces. Essential peripherals such as LVD, POR, PWM, and WDT are also included. Supplied in a 44-LQFP (10x10) package for surface mounting, this component operates within a voltage range of 2.7V to 5.5V and an ambient temperature range of -40°C to 85°C. The S9S08AW48E5CFGE is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 48KB (48K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 34 |
| Programmable | Not Verified |
