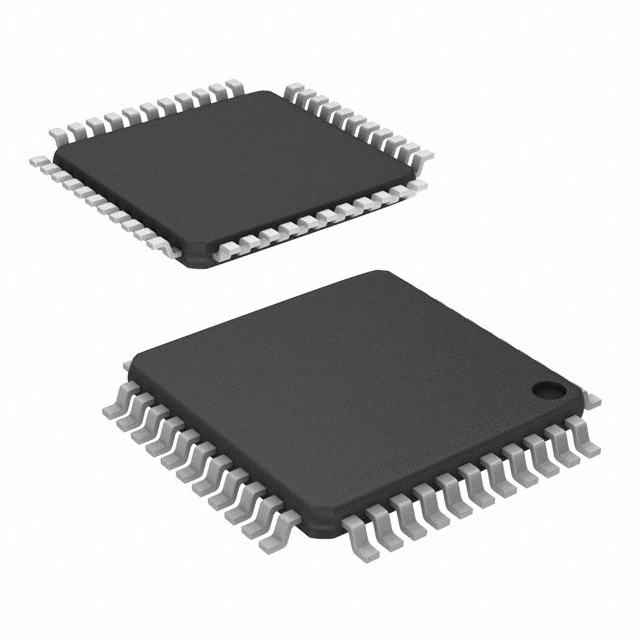

S9S08AW16E5CFGER
IC MCU 8BIT 16KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 microcontroller, part number S9S08AW16E5CFGER. This 8-bit S08 series device features a 40MHz S08 core processor with 16KB of FLASH program memory and 1KB of RAM. Connectivity options include I2C, SCI, and SPI interfaces. It is equipped with 8x10-bit Analog-to-Digital converters and integrated peripherals such as LVD, POR, PWM, and WDT. The device operates from a 2.7V to 5.5V supply and has 34 I/O pins. The internal oscillator provides flexible clocking. This component is supplied in a 44-LQFP (10x10) surface mount package, on tape and reel. Applications include automotive, industrial automation, and consumer electronics.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 34 |
| Programmable | Not Verified |
