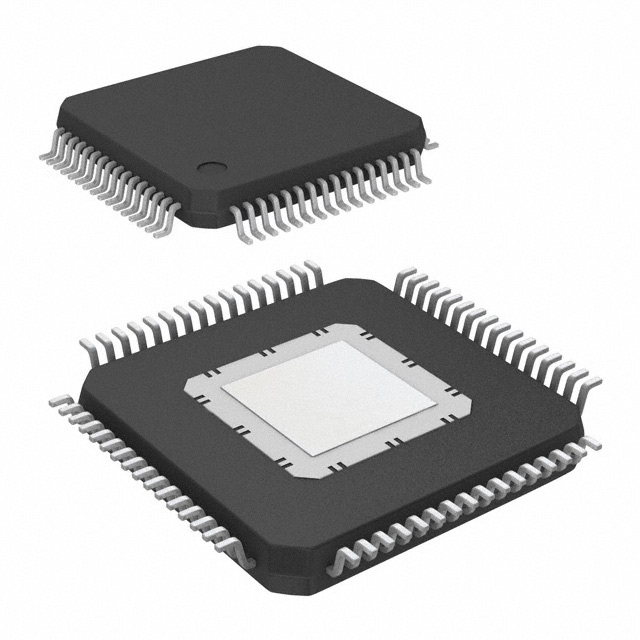

S912ZVML32F3VKH
IC MCU 16BIT 32KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S12 MagniV series microcontroller, part number S912ZVML32F3VKH. This 16-bit MCU features an S12Z core operating at 50MHz. It offers 32KB of FLASH program memory and 4KB of RAM. Connectivity options include CANbus, LINbus, SCI, and SPI. The device integrates a 9-channel 12-bit Analog-to-Digital converter and includes peripherals such as DMA, POR, PWM, and WDT. Additional memory includes 512 bytes of EEPROM. The S912ZVML32F3VKH is housed in a 64-HLQFP (10x10) package suitable for surface mounting. It operates within a voltage range of 3.5V to 40V and a temperature range of -40°C to 105°C. This component is commonly utilized in automotive and industrial applications.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 9x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V |
| Connectivity | CANbus, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 64-HLQFP (10x10) |
| Number of I/O | 31 |
| Programmable | Not Verified |
