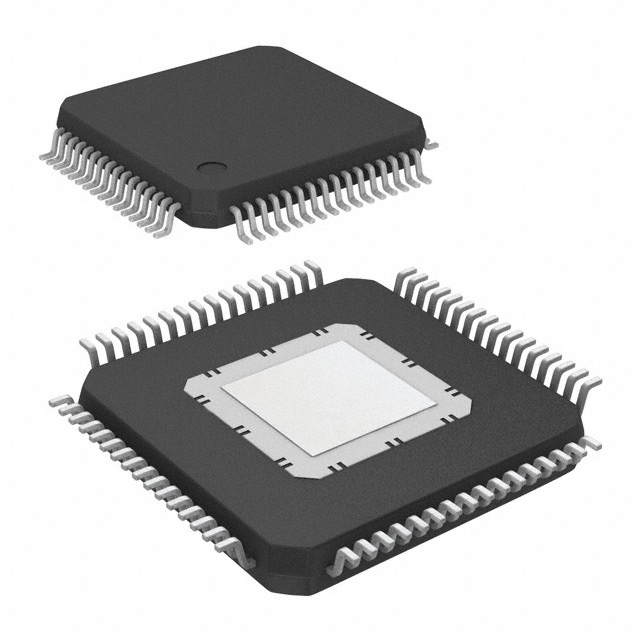

S912ZVMC12F3VKH
IC MCU 16BIT 128KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S12 MagniV microcontroller, part number S912ZVMC12F3VKH, features a 16-bit S12Z core operating at 50MHz. This device offers 128KB of FLASH program memory and 8KB of RAM, complemented by 512 bytes of EEPROM. It includes multiple communication interfaces such as CANbus, SCI, and SPI, along with a 9-channel 12-bit Analog-to-Digital converter. Integrated peripherals include DMA, POR, PWM, and WDT. The S912ZVMC12F3VKH is housed in a 64-HLQFP (10x10) package suitable for surface mounting and operates within an ambient temperature range of -40°C to 105°C. Its wide supply voltage range of 3.5V to 40V makes it suitable for automotive and industrial applications.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 9x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 64-HLQFP (10x10) |
| Number of I/O | 31 |
| Programmable | Not Verified |
