S912ZVM16F1WKFR

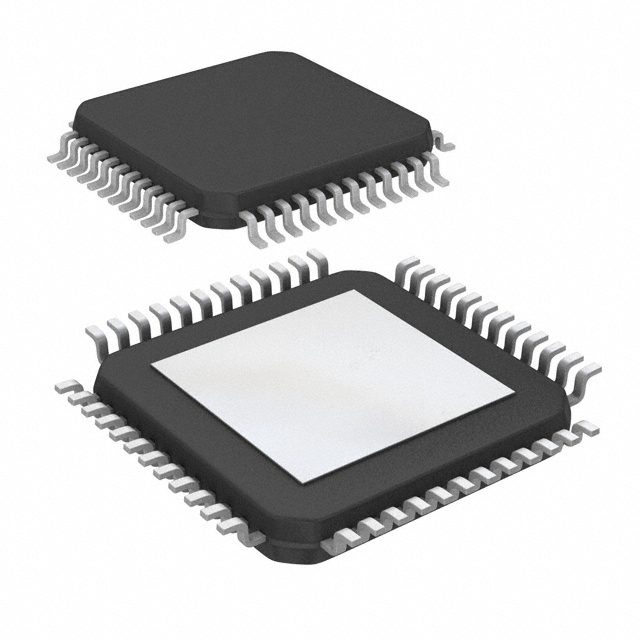

IC MCU 16BIT 16KB FLASH 48LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S12 MagniV Series S12ZVM16F1WKFR microcontroller features a 16-bit S12Z core processor operating at 50MHz. This device offers 16KB of FLASH program memory and 2KB of RAM, along with 128 x 8 EEPROM. Integrated peripherals include DMA, POR, and WDT. Connectivity is supported via SCI. The S12ZVM16F1WKFR includes 4x12-bit Analog-to-Digital converters and 31 general-purpose I/O pins. It operates across a wide temperature range of -40°C to 150°C (TA) and from 3.5V to 40V supply voltage. The component is housed in a 48-LQFP-EP (7x7) exposed pad package optimized for surface mounting and supplied on tape and reel. This microcontroller is utilized in automotive applications.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 4x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V |
| Connectivity | SCI |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | 48-LQFP-EP (7x7) |
| Number of I/O | 31 |
| Programmable | Not Verified |
