S912ZVM16F1WKF

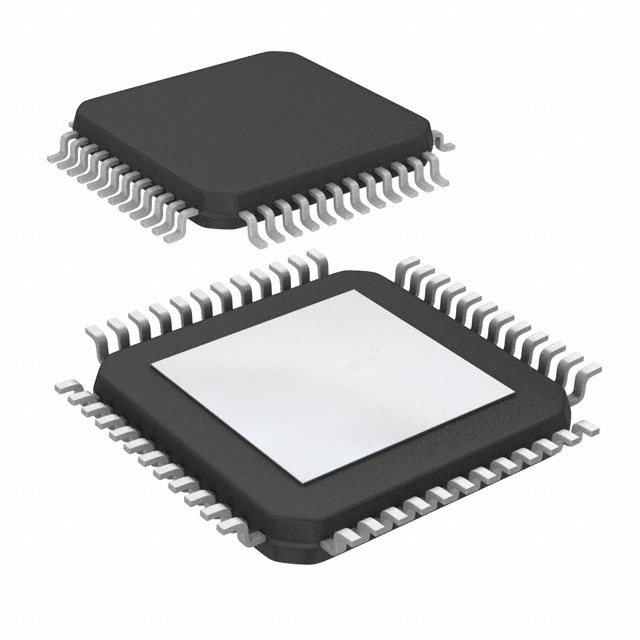

IC MCU 16BIT 16KB FLASH 48LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. S12 MagniV series microcontroller, part number S912ZVM16F1WKF, is a 16-bit device featuring an S12Z core operating at 50MHz. This microcontroller includes 16KB of FLASH program memory and 2KB of RAM, with an additional 128 x 8 EEPROM. It offers 31 general-purpose I/O pins and supports serial communication via SCI. Integrated peripherals include DMA, POR, and WDT. Data conversion is handled by four 12-bit Analog-to-Digital converters. The component is housed in a 48-LQFP-EP (7x7) surface-mount package and operates over a wide temperature range of -40°C to 150°C. Power supply voltage ranges from 3.5V to 40V. This component is suitable for automotive and industrial applications.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 4x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V |
| Connectivity | SCI |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | 48-LQFP-EP (7x7) |
| Number of I/O | 31 |
| Programmable | Not Verified |
