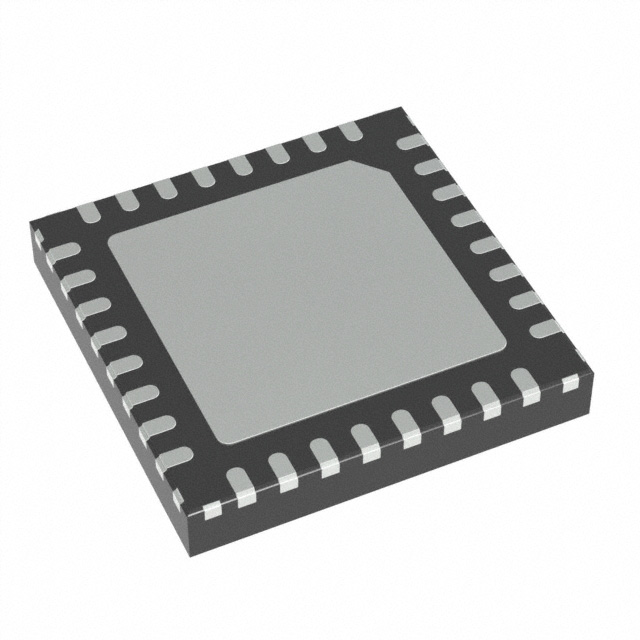

S912ZVL64F0MFMR
IC MCU 16BIT 64KB FLASH 32QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S12 MagniV microcontroller, part number S912ZVL64F0MFMR, features a 16-bit S12Z core operating at 32MHz. This device offers 64KB of FLASH program memory and 1KB of RAM, complemented by 512 bytes of EEPROM. It includes integrated peripherals such as LVD, POR, PWM, and WDT, along with a 6x10-bit A/D converter. Connectivity options include CANbus, I2C, IrDA, LINbus, SCI, SPI, and UART/USART. The S912ZVL64F0MFMR is housed in a 32-QFN-EP (5x5) surface mount package with wettable flanks, suitable for operation between -40°C and 125°C. Power supply voltage ranges from 5.5V to 18V. This component is commonly utilized in automotive and industrial applications.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Speed | 32MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 6x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 18V |
| Connectivity | CANbus, I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 32-QFN-EP (5x5) |
| Number of I/O | 19 |
| Programmable | Not Verified |
