S912ZVC64F0MKHR
IC MCU 16BIT 64KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S12 MagniV microcontroller, part number S912ZVC64F0MKHR, features a 16-bit S12Z core operating at 32MHz. This component provides 64KB of FLASH program memory and 4KB of RAM, with an additional 1K x 8 EEPROM. Integrated peripherals include DMA, POR, PWM, and WDT. Connectivity options encompass CANbus, I2C, SCI, and SPI. The device is equipped with 16 channels of 10-bit A/D conversion and one 8-bit D/A converter. Packaged in a 64-LQFP (10x10) exposed pad, it is suitable for surface mounting and operates across a temperature range of -40°C to 125°C. This microcontroller is commonly utilized in automotive and industrial applications. The S912ZVC64F0MKHR is supplied in Tape & Reel packaging.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

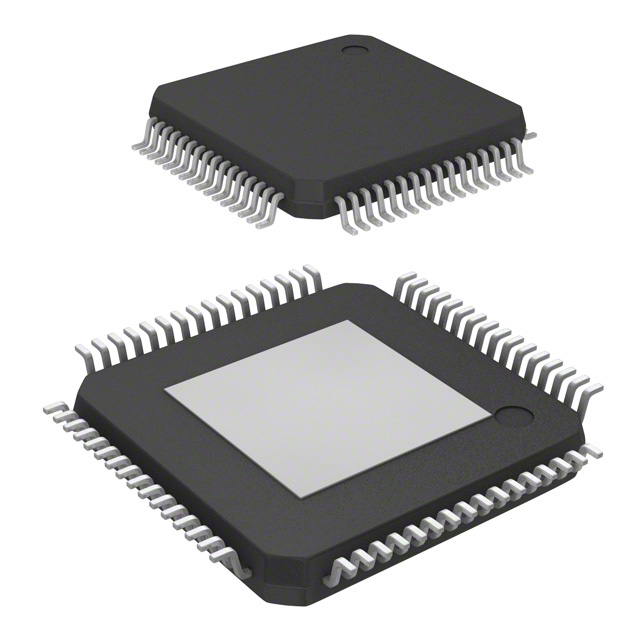

| Package / Case | 64-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 16x10b; D/A 1x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of I/O | 42 |
| Programmable | Not Verified |
Request a Quote
