S912ZVC64AMKHR
IC MCU 16BIT 64KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S12 MagniV microcontroller, part number S912ZVC64AMKHR, is a 16-bit device featuring an S12Z core. This component offers 64KB of FLASH program memory and 4KB of RAM, with an additional 1KB EEPROM. It operates at a maximum speed of 32MHz and includes a comprehensive array of peripherals such as DMA, LVD, POR, PWM, and WDT. Connectivity options include CANbus, I2C, SCI, and SPI. The device is equipped with 16x10-bit SAR analog-to-digital converters and provides 42 I/O pins. Housed in a 64-LQFP (10x10) exposed pad package, it is designed for surface mounting and operates across a temperature range of -40°C to 125°C. The supply voltage range is 5.5V to 18V. This microcontroller is commonly utilized in automotive and industrial applications.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

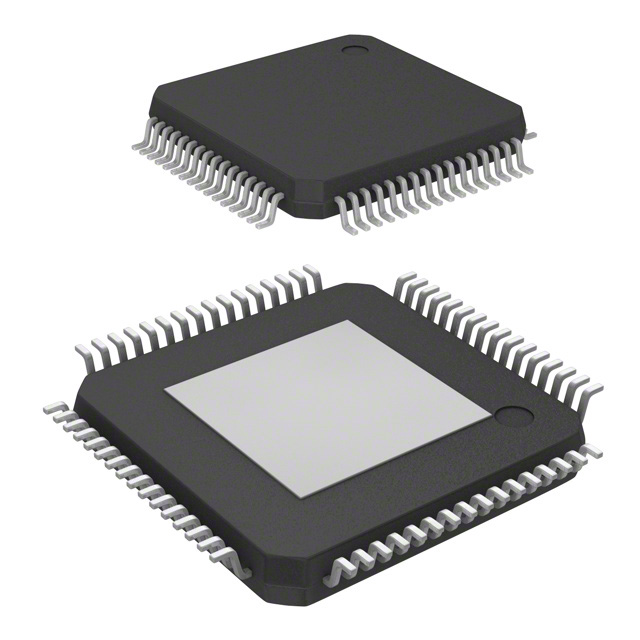

| Package / Case | 64-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 16x10b SAR |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 18V |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of I/O | 42 |
