S912ZVC64AMKH
IC MCU 16BIT 64KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

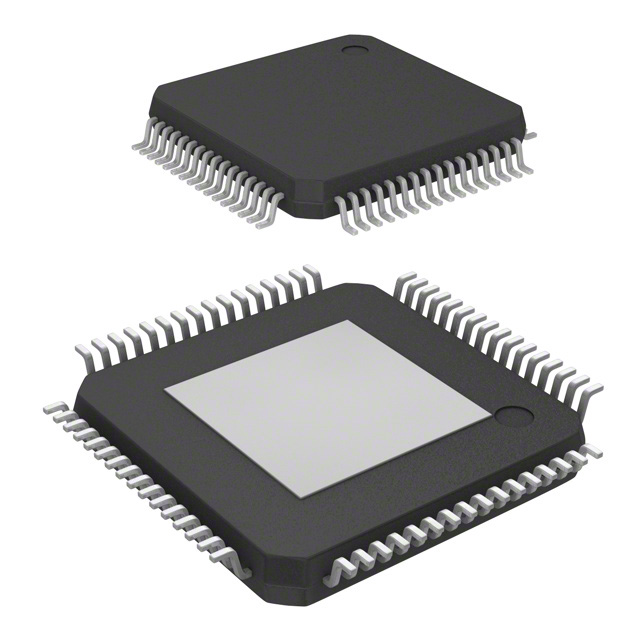

NXP USA Inc. S12 MagniV microcontroller, part number S912ZVC64AMKH, features a 16-bit S12Z core processor operating at 32MHz. This device offers 64KB of FLASH program memory and 4KB of RAM. Integrated peripherals include CANbus, I2C, SCI, and SPI connectivity, along with DMA, LVD, POR, PWM, and WDT. It also incorporates a 16-channel, 10-bit SAR Analog-to-Digital converter. The S912ZVC64AMKH is housed in a 64-LQFP (10x10) exposed pad package suitable for surface mounting and operates across a voltage range of 5.5V to 18V. Typical applications span automotive and industrial automation sectors. The operating temperature range is -40°C to 125°C.
Additional Information
Series: S12 MagniVRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | S12Z |
| Data Converters | A/D 16x10b SAR |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 18V |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of I/O | 42 |
