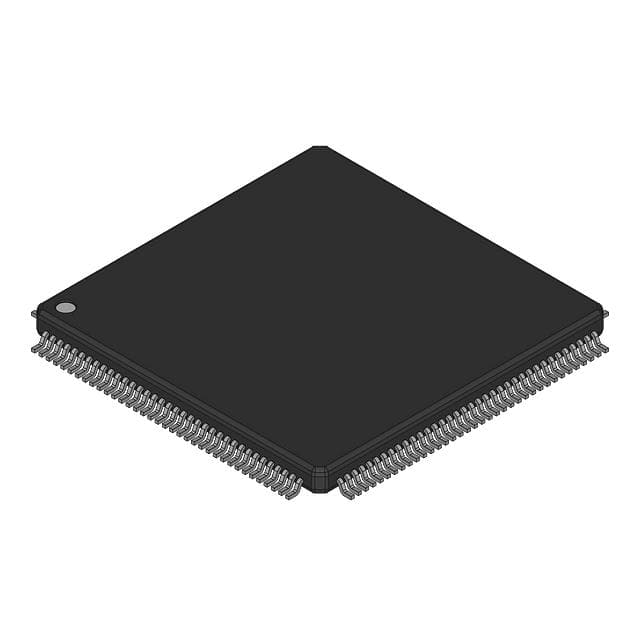

S912XHZ384F1VAG
IC MCU 16BIT 384KB FLASH 144LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12X series microcontroller, part number S912XHZ384F1VAG. This 16-bit MCU features an 80MHz HCS12X core with 384KB of FLASH program memory and 28KB of RAM. The device includes 4KB of EEPROM, 16 channels of 8/10-bit A/D conversion, and 117 general-purpose I/O lines. Connectivity options include CANbus, EBI/EMI, I2C, IrDA, LINbus, SCI, and SPI. Peripherals include LCD control, motor control PWM, Power-on Reset (POR), PWM timers, and a Watchdog Timer (WDT). The S912XHZ384F1VAG is housed in a 144-LQFP (20x20) package suitable for surface mounting. It operates within a voltage range of 2.35V to 5.5V and has an operating temperature range of -40°C to 105°C. This component is commonly utilized in automotive, industrial control, and consumer electronics applications.
Additional Information
Series: HCS12XRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 384KB (384K x 8) |
| RAM Size | 28K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | HCS12X |
| Data Converters | A/D 16x8/10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, SCI, SPI |
| Peripherals | LCD, Motor control PWM, POR, PWM, WDT |
| Supplier Device Package | 144-LQFP (20x20) |
| Number of I/O | 117 |
| Programmable | Not Verified |
