S912XDP512J0MAG
IC MCU 16BIT 512KB FLASH 144LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

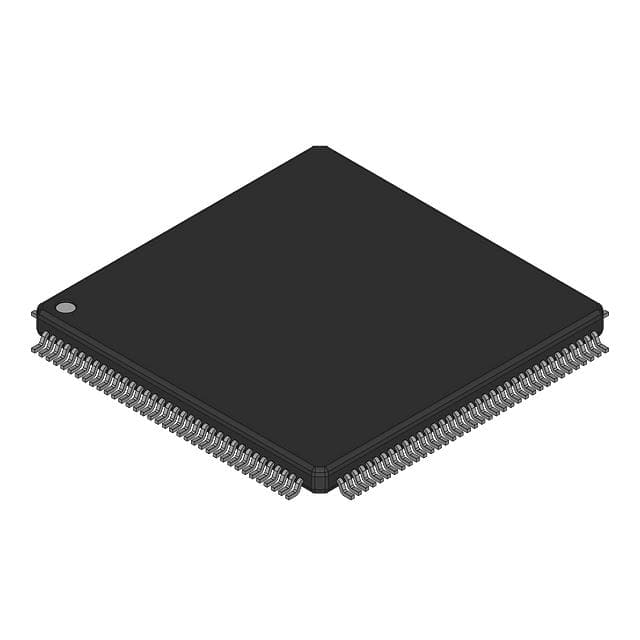

NXP USA Inc. HCS12X microcontroller, part number S912XDP512J0MAG, features a 16-bit HCS12X core operating at 80MHz. This device offers 512KB of FLASH program memory (512K x 8) and 32KB of RAM (32K x 8), along with 4KB of EEPROM. It includes a comprehensive set of peripherals such as LVD, POR, PWM, and WDT, and supports various communication protocols including CANbus, EBI/EMI, I2C, SCI, and SPI. Data conversion capabilities are provided by 8 channels of 10-bit ADCs and 16 channels of 10-bit ADCs. The S912XDP512J0MAG is housed in a 144-LQFP (20x20) package, suitable for surface mounting, and operates within a voltage range of 2.35V to 5.5V. This component is utilized in automotive and industrial applications.
Additional Information
Series: HCS12XRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | HCS12X |
| Data Converters | A/D 8x10b, 16x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 144-LQFP (20x20) |
| Number of I/O | 119 |
| Programmable | Not Verified |
