S711E20E0VFNE2

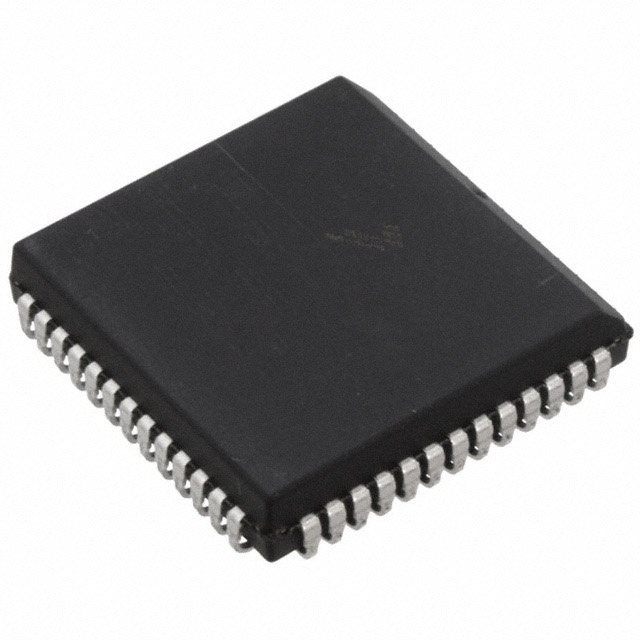

IC MCU 8BIT 20KB OTP 52PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC11 Series microcontroller, part number S711E20E0VFNE2, features an 8-bit HC11 core operating at 2MHz. This device offers 20KB of OTP program memory and 768 bytes of RAM, complemented by 512 bytes of EEPROM. Integrated peripherals include Power-on Reset (POR) and Watchdog Timer (WDT). Connectivity options encompass SCI and SPI interfaces. The S711E20E0VFNE2 is equipped with an 8-channel, 8-bit analog-to-digital converter and provides 38 general-purpose I/O pins. It operates within a voltage range of 4.5V to 5.5V and is specified for operation between -40°C and 105°C. The component is housed in a 52-PLCC (52-LCC (J-Lead)) surface-mount package. Applications for this microcontroller are found in industrial automation and automotive systems.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 52-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 2MHz |
| Program Memory Size | 20KB (20K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | 512 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 52-PLCC (19.13x19.13) |
| Number of I/O | 38 |
| Programmable | Not Verified |
