S32K394NHT1MJBSR
S32K394NHT1MJBSRManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. S32K394NHT1MJBSR is a 32-Bit Quad-Core ARM Cortex-M7 microcontroller operating at 320MHz. This automotive-grade component features 4MB of FLASH program memory and 800KB of RAM, with an additional 128KB of EEPROM. Connectivity options include CANbus, I2C, QSPI, SPI, and UART/USART interfaces, alongside peripherals such as DMA, I2S, and WDT. The S32K3 series device is qualified to AEC-Q100 standards and packaged in a 289-LFBGA (14x14) for surface mounting. Its data conversion capabilities include 69x12b SAR ADCs and Sigma-Delta converters. This component is suitable for demanding automotive applications.
Additional Information
Series: S32K3RoHS Status: RoHS CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

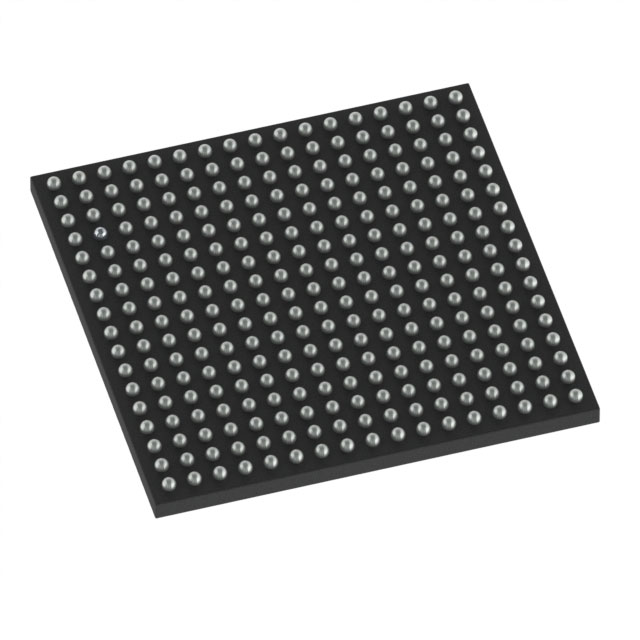

| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 320MHz |
| Program Memory Size | 4MB (4M x 8) |
| RAM Size | 800K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 69x12b SAR, Sigma-Delta |
| Core Size | 32-Bit Quad-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, I2C, QSPI, SPI, UART/USART |
| Peripherals | DMA, I2S, WDT |
| Supplier Device Package | 289-LFBGA (14x14) |
| Grade | Automotive |
| Number of I/O | 209 |
| Qualification | AEC-Q100 |
