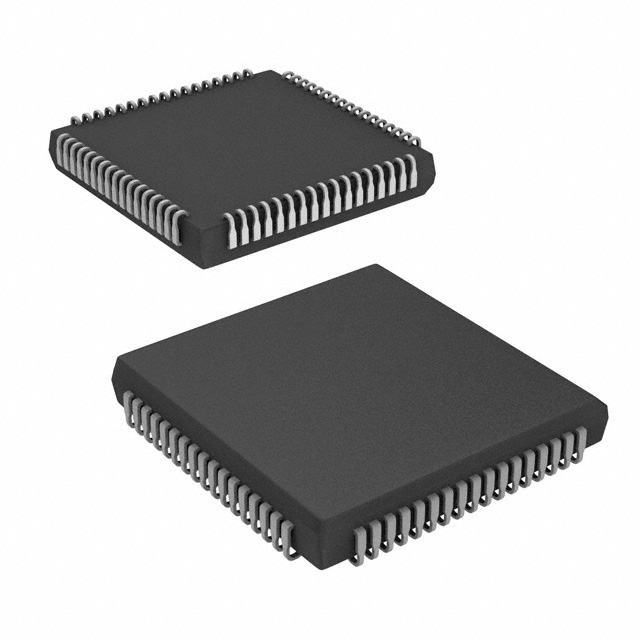

PXAS37KBA,512
IC MCU 16BIT 32KB OTP 68PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. XA series microcontroller, part number PXAS37KBA-512. This 16-bit microcontroller features a 30MHz XA core and 32KB of OTP program memory, organized as 32K x 8. It includes 1KB of RAM and 50 general-purpose I/O pins. Integrated peripherals include PWM and WDT. Connectivity options comprise EBI/EMI, I2C, and UART/USART. The device is equipped with 8x8-bit A/D data converters. Offered in a 68-PLCC surface mount package, it operates within a temperature range of 0°C to 70°C and requires an external oscillator. Supply voltage ranges from 2.7V to 5.5V. This component finds application in industrial automation and automotive electronics.
Additional Information
Series: XARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 68-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 30MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | XA |
| Data Converters | A/D 8x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, UART/USART |
| Peripherals | PWM, WDT |
| Supplier Device Package | 68-PLCC (24.18x24.18) |
| Number of I/O | 50 |
| Programmable | Not Verified |
