PC56F84786VLK

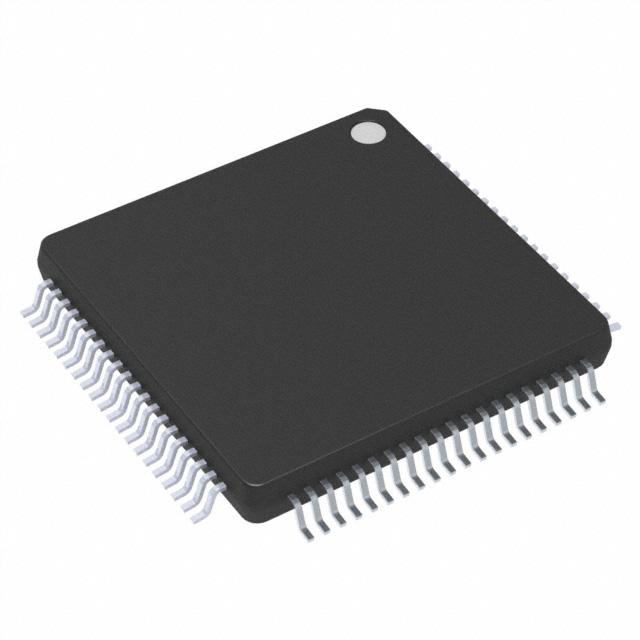

IC MCU 32BIT 256KB FLASH 80FQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. 56800EX 56F8xxx series microcontroller, part number PC56F84786VLK. This 32-bit single-core device operates at 100MHz and features 256KB of FLASH program memory with 32KB of RAM. It includes a 16-channel 12-bit Analog-to-Digital converter and a 10-channel 16-bit ADC, alongside a single 12-bit Digital-to-Analog converter. Connectivity options include CANbus, I2C, LINbus, SCI, and SPI. The 80-pin FQFP (12x12) package is surface mountable. Integrated peripherals include Brown-out Detect/Reset, DMA, LVD, POR, PWM, and WDT. This component is suitable for applications in automotive and industrial sectors. The operating temperature range is -40°C to 105°C.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | 56800EX |
| Data Converters | A/D 16x12b, 10x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 80-FQFP (12x12) |
| Number of I/O | 68 |
| Programmable | Not Verified |
