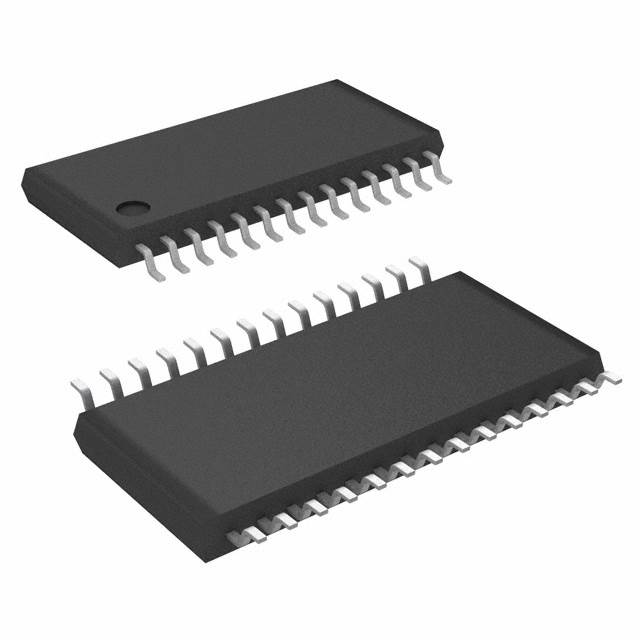

P89LPC938FDH,529
IC MCU 8BIT 8KB FLASH 28TSSOPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC900 series microcontroller, part number P89LPC938FDH-529. This 8-bit 8051 core MCU operates at 18MHz, featuring 8KB of FLASH program memory and 768 bytes of RAM. Connectivity options include I2C, SPI, and UART/USART interfaces. The device integrates an 8-channel 10-bit Analog-to-Digital converter and 512 bytes of EEPROM. Peripherals include Brown-out Detect/Reset, LED, POR, PWM, and WDT. The P89LPC938FDH-529 is supplied in a 28-TSSOP package for surface mounting and operates within a temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: LPC900RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 18MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | 8051 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LED, POR, PWM, WDT |
| Supplier Device Package | 28-TSSOP |
| Number of I/O | 26 |
| Programmable | Not Verified |
