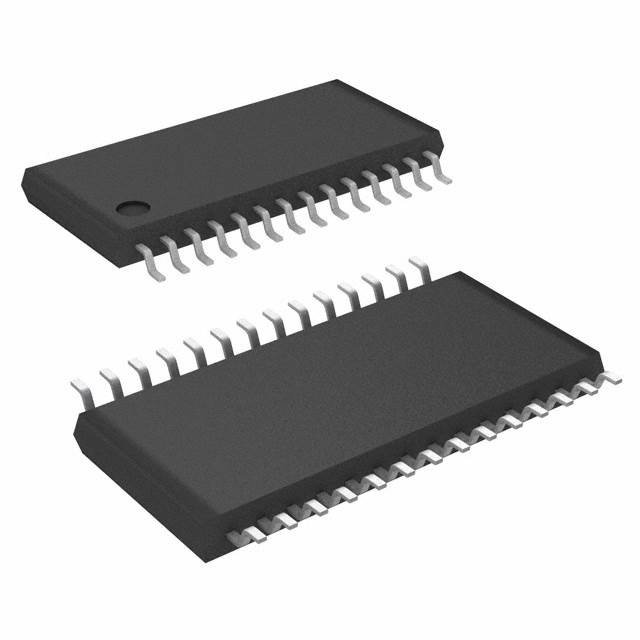

P89LPC935FDH,529
IC MCU 8BIT 8KB FLASH 28TSSOPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC900 series microcontroller, part number P89LPC935FDH-529. This 8-bit 8051 core microcontroller operates at 12MHz, featuring 8KB of FLASH program memory and 768 bytes of RAM. It includes 512 bytes of EEPROM for data storage. Connectivity options encompass I2C, SPI, and UART/USART interfaces. The device is equipped with an 8-channel 8-bit Analog-to-Digital converter and dual 8-bit Digital-to-Analog converters. Integrated peripherals include Brown-out Detect/Reset, LED control, Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT). The P89LPC935FDH-529 offers 26 general-purpose I/O pins and utilizes an internal oscillator. It is supplied in a 28-TSSOP package suitable for surface mounting and operates within an ambient temperature range of -40°C to 85°C. This component is commonly found in industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: LPC900RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 12MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | 8051 |
| Data Converters | A/D 8x8b; D/A 2x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LED, POR, PWM, WDT |
| Supplier Device Package | 28-TSSOP |
| Number of I/O | 26 |
| Programmable | Not Verified |
