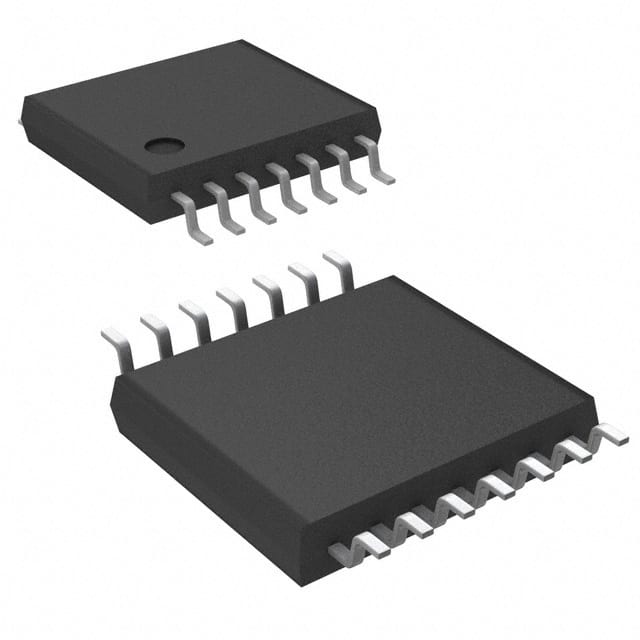

P89LPC913FDH,129
IC MCU 8BIT 1KB FLASH 14TSSOPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC900 series microcontroller, part number P89LPC913FDH-129. This 8-bit 8051 microcontroller features a 1KB FLASH program memory and 128 Bytes of RAM. Operating at up to 18MHz, it includes integrated SPI and UART/USART connectivity. Peripherals include Brown-out Detect/Reset, LED, POR, PWM, and WDT. The device is available in a 14-TSSOP surface mount package and operates from a 2.4V to 3.6V supply. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: LPC900RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 18MHz |
| Program Memory Size | 1KB (1K x 8) |
| RAM Size | 128 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LED, POR, PWM, WDT |
| Supplier Device Package | 14-TSSOP |
| Number of I/O | 12 |
| Programmable | Verified |
