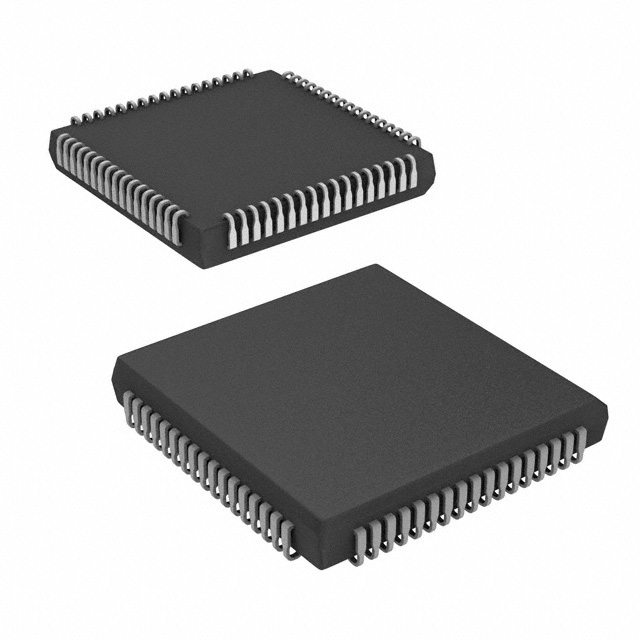

P80C552IBA/08,518
IC MCU 8BIT ROMLESS 68PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. P80C552IBA-08-518 is an 8-bit microcontroller from the 80C series, featuring a ROMless architecture and an 8051 core. This device operates at a speed of 24MHz and offers 256 x 8 bytes of RAM. Connectivity options include EBI/EMI, I2C, and UART/USART. Integrated peripherals consist of POR, PWM, and WDT. The microcontroller also includes 8x10-bit A/D converters. It is supplied in a 68-PLCC (24.18x24.18) package for surface mounting. The operating temperature range is 0°C to 70°C. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: 80CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | - |
| RAM Size | 256 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 68-PLCC (24.18x24.18) |
| Number of I/O | 40 |
| Programmable | Not Verified |
