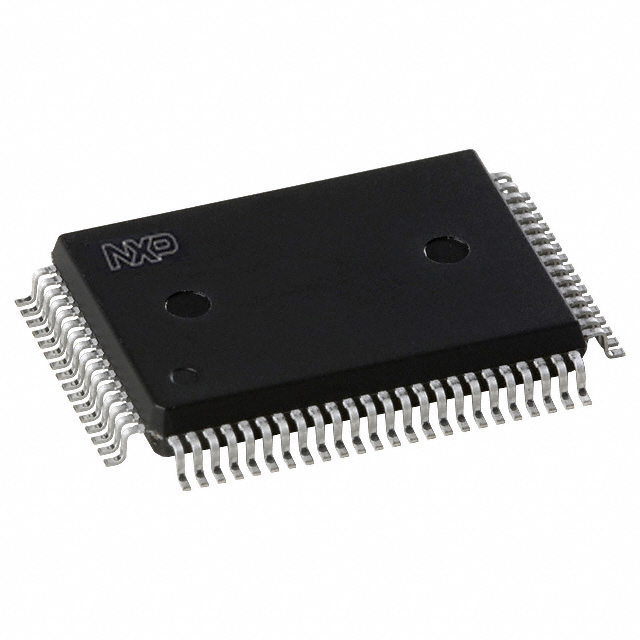

P80C552EBB/08,557
IC MCU 8BIT ROMLESS 80PQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. 80C Series microcontroller, part number P80C552EBB-08-557. This 8-bit 8051 core microcontroller operates at 16MHz with a ROMless program memory architecture. It features 256 x 8 RAM and 40 I/O pins. Connectivity options include EBI/EMI, I2C, and UART/USART. Integrated peripherals include POR, PWM, and WDT. The device incorporates an 8x10-bit A/D data converter. Supplied in an 80-PQFP (14x20) surface mount package, it operates within a temperature range of 0°C to 70°C (TA) and requires a supply voltage of 4.5V to 5.5V. This component is commonly utilized in industrial automation, automotive control, and consumer electronics applications.
Additional Information
Series: 80CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-BQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | - |
| RAM Size | 256 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 80-PQFP (14x20) |
| Number of I/O | 40 |
| Programmable | Not Verified |
