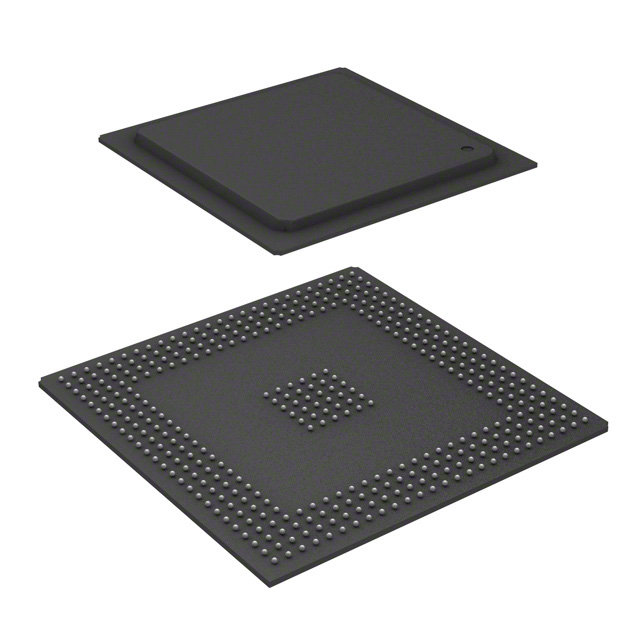

MPC563MZP56R2
IC MCU 32BIT 512KB FLASH 388PBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC5xx series microcontroller, part number MPC563MZP56R2. This 32-bit single-core PowerPC microcontroller operates at 56MHz, featuring 512KB of FLASH program memory and 32KB of RAM. Connectivity options include CANbus, EBI/EMI, SCI, SPI, and UART/USART. It integrates 32x10-bit Analog-to-Digital converters and peripherals such as POR, PWM, and WDT. The component is supplied in a 388-PBGA (27x27) surface mount package, delivered on tape and reel. Operating voltage is specified from 2.5V to 2.7V with an operating temperature range of -40°C to 125°C (TA). This device is commonly utilized in automotive and industrial control applications.
Additional Information
Series: MPC5xxRoHS Status: RoHS non-compliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 388-BBGA |
| Mounting Type | Surface Mount |
| Speed | 56MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | PowerPC |
| Data Converters | A/D 32x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 2.7V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 388-PBGA (27x27) |
| Number of I/O | 56 |
| Programmable | Not Verified |
